330-0016 509 SERIES CAM CHAIN KIT FOR 99-06 TWIN CAM

S&S CYCLE

Part Number : 330-0016

330-0016

S&S CYCLE 330-0016 509 Series Cam Chain Kit for 99-06 Twin Cam

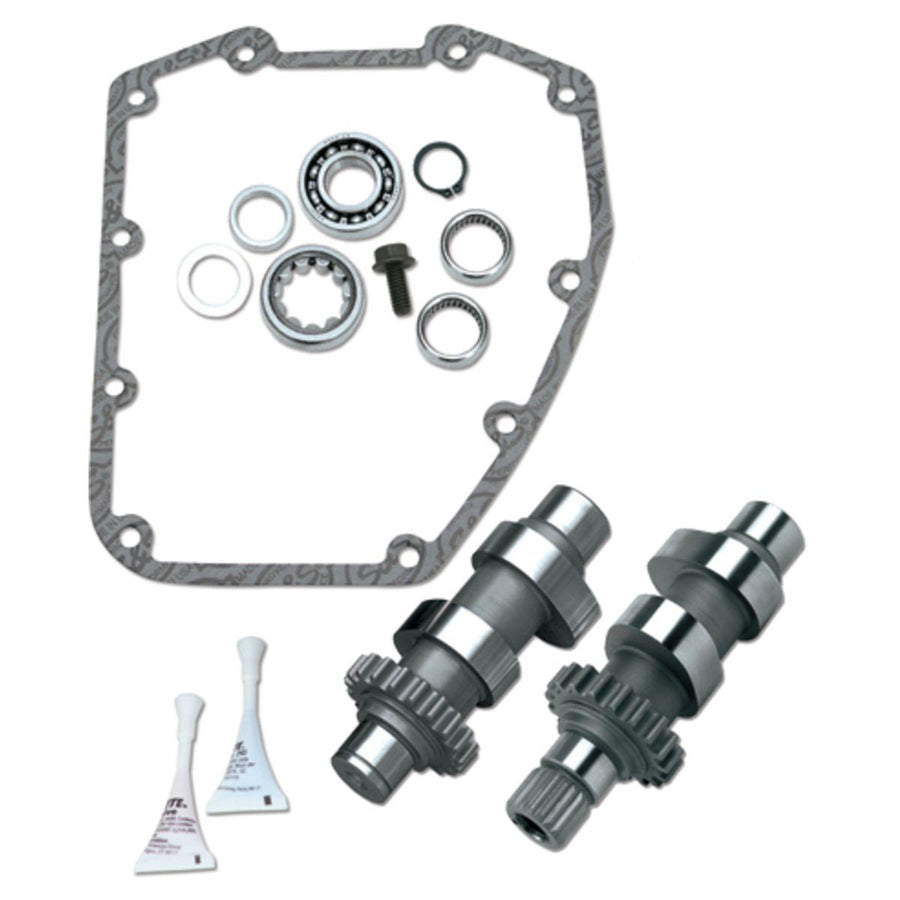

Great low and mid-range torque Lower lift allows them to be bolted into stock 96'-106' 2006 engines with stock valve springs Strongest from 1,000-4,500 rpm 180 psi cranking compression; no need for compression releases Included Items: (2) Chain drive cams (1) front, (1) rear, (2) 22 x28.5 x12 Needle bearings, (1) Large O-ring, (2) Small O-rings, (1) Retaining ring, (1) 20 x 42x 12 Bearing, (1) 20 x 42 x12 Bearing w/O-ring, (1) 5/16'-18 x 3/4' Flange hex head bolt, (1) Cam cover gasket, (1) 5ml Tube of loctite� 262, (1) 5ml Tube of loctite� 243, Instructions Made in the U.S.A. Installer must check coil bind, valve-to-valve clearance and valve-to-piston clearance.Due to the inherent characteristics of gear drives, you may experience more valve train noise If OES, 509 or 510C cams are used with the stock chain drive system in Twin Cam 88 engines, it is recommended to use cylinder heads with stock valve springs or performance valve springs with no more than 160 lb. of seat force. For more demanding applications, we recommend the S&S gear drive cams. Specs
PRODUCT NAME CAM KIT

TYPE CHAIN

APPLICATION INTAKE / EXHAUST

GRIND 509 SERIES

INTAKE LIFT AT TDC 0.174'

INTAKE OPEN 18�

INTAKE LOBE CENTERLINE 90�

INTAKE CLOSE 18�

INTAKE LIFT 0.509'

INTAKE DURATION 216�

EXHAUST LIFT 0.509'

EXHAUST DURATION 237�

EXHAUST LIFT AT TDC 0.140'

EXHAUST OPEN 46�

EXHAUST LOBE CENTERLINE 107.5�

EXHAUST CLOSE 11�

UNITS KIT

RIDING STYLE STREET
Fitments
POSITION NOTES

2006 Harley-Davidson Street Glide FLHX
2006 Harley-Davidson Street Glide EFI FLHX
2006 Harley-Davidson Softail Heritage EFI FLSTI
2006 Harley-Davidson Softail Heritage FLST
2005-2006 Harley-Davidson Softail Springer Classic FLSTSC
2005-2006 Harley-Davidson Softail Deluxe EFI FLSTNI
2005-2006 Harley-Davidson Softail Deluxe FLSTN
2005-2006 Harley-Davidson Softail Springer Classic EFI FLSTSCI
2005 Harley-Davidson Super Glide Custom FXDC
2005 Harley-Davidson Super Glide Custom EFI FXDCI
2005 Harley-Davidson 15th Anniversary Fat Boy FLSTF
2004-2006 Harley-Davidson Road King Custom EFI FLHRS
2004-2006 Harley-Davidson Road King Custom FLHRS
2004-2005 Harley-Davidson Super Glide EFI FXDI
2004-2005 Harley-Davidson Low Rider EFI FXDL
2004-2005 Harley-Davidson Super Glide Sport EFI FXDXI
2004-2005 Harley-Davidson Wide Glide EFI FXDWGI
2003-2006 Harley-Davidson Electra Glide Standard EFI FLHTI
2002-2006 Harley-Davidson Softail Fat Boy EFI FLSTFI
2001-2006 Harley-Davidson Softail Standard EFI FXSTI
2001-2006 Harley-Davidson Softail Deuce EFI FXSTDI
2001-2006 Harley-Davidson Softail Heritage Classic EFI FLSTCI
2001-2006 Harley-Davidson Softail Night Train EFI FXSTBI
2001-2006 Harley-Davidson Softail Springer EFI FXSTSI
2001-2003 Harley-Davidson Softail Heritage Springer EFI FLSTSI
2001-2003 Harley-Davidson Super Glide T-Sport FXDXT
2000-2006 Harley-Davidson Softail Deuce FXSTD
2000-2006 Harley-Davidson Softail Night Train FXSTB
2000-2006 Harley-Davidson Softail Springer FXSTS
2000-2006 Harley-Davidson Softail Standard FXST
2000-2006 Harley-Davidson Softail Heritage Classic FLSTC
2000-2006 Harley-Davidson Softail Fat Boy FLSTF
2000-2003 Harley-Davidson Softail Heritage Springer FLSTS
1999-2006 Harley-Davidson Road King FLHR
1999-2006 Harley-Davidson Electra Glide Ultra Classic EFI FLHTCUI
1999-2006 Harley-Davidson Road King EFI FLHR
1999-2006 Harley-Davidson Road King Classic EFI FLHRC
1999-2006 Harley-Davidson Road Glide EFI FLTR
1999-2006 Harley-Davidson Electra Glide Standard FLHT
1999-2006 Harley-Davidson Electra Glide Classic EFI FLHTCI
1999-2005 Harley-Davidson Super Glide Sport FXDX
1999-2005 Harley-Davidson Electra Glide Classic FLHTC
1999-2005 Harley-Davidson Super Glide FXD
1999-2005 Harley-Davidson Wide Glide FXDWG
1999-2005 Harley-Davidson Low Rider FXDL
1999-2002 Harley-Davidson Road Glide FLTR
1999-2000 Harley-Davidson Dyna Convertible FXDS-CONV
1999 Harley-Davidson Electra Glide Ultra Classic FLHTCU



**** PLEASE NOTE ***** : 330-0016 IS A QUALITY AFTERMARKET PRODUCT. ANY OEM HARLEY PART NUMBERS IN THE TITLE OR DESCRIPTION OF THIS ITEM ARE FOR REFERENCE ONLY , THIS IS A QUALITY AFTERMARKET PRODUCT THAT WE HAVE SOURCED AS AN ALTERNATIVE TO THE OEM VERSION OR FOR WHEN HARLEY-DAVIDSON HAVE CEASED TO MANUFACTURE THE OEM PART.
