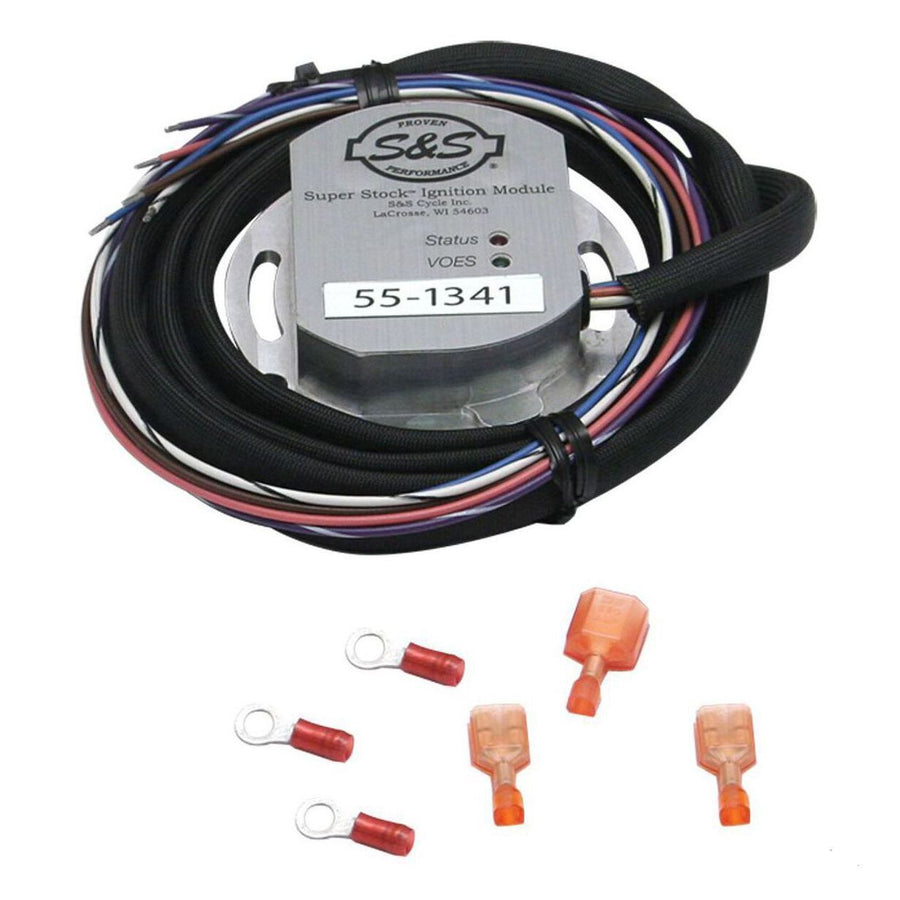

55-1341 SUPER STOCK® IGNITION MODULE FOR SHOVEL HEAD 93" AND PAN HEAD 93" FOR 1966-'84
S&S CYCLE55-1341
FEATURES & BENEFITS
•Electric-start mode allows the pre-ignition cranking to be set anywhere from 1 to 4 engine revolutions (only available with current modules – earlier modules cannot be updated)
•Pre-programmed ignitions are custom tailored for a specific S&S engine – no need for adjustments
•Single fire operation – requires a single fire coil for single spark plug applications
•Dual plugged applications require a pair of two tower coils or a single four tower coil
•Minimum 3.0? primary resistance
•Overload and short circuit protected
•VOES switches to less aggressive curve under load or hard acceleration
•6300 rpm rev-limiter
•24-hour break-in rev-limiter – prevents damage during break-in
•Data logging diagnostic capabilities
Part Number : 55-1341
55-1341
FEATURES & BENEFITS
•Electric-start mode allows the pre-ignition cranking to be set anywhere from 1 to 4 engine revolutions (only available with current modules – earlier modules cannot be updated)
•Pre-programmed ignitions are custom tailored for a specific S&S engine – no need for adjustments
•Single fire operation – requires a single fire coil for single spark plug applications
•Dual plugged applications require a pair of two tower coils or a single four tower coil
•Minimum 3.0? primary resistance
•Overload and short circuit protected
•VOES switches to less aggressive curve under load or hard acceleration
•6300 rpm rev-limiter
•24-hour break-in rev-limiter – prevents damage during break-in
•Data logging diagnostic capabilities
**** PLEASE NOTE ***** : 55-1341
These are performance and custom aftermarket products sourced to match or exceed original specifications as an alternative to the OEM version. Any Harley-Davidson part numbers referenced are for identification purposes only.
FEATURES & BENEFITS
•Electric-start mode allows the pre-ignition cranking to be set anywhere from 1 to 4 engine revolutions (only available with current modules – earlier modules cannot be updated)
•Pre-programmed ignitions are custom tailored for a specific S&S engine – no need for adjustments
•Single fire operation – requires a single fire coil for single spark plug applications
•Dual plugged applications require a pair of two tower coils or a single four tower coil
•Minimum 3.0? primary resistance
•Overload and short circuit protected
•VOES switches to less aggressive curve under load or hard acceleration
•6300 rpm rev-limiter
•24-hour break-in rev-limiter – prevents damage during break-in
•Data logging diagnostic capabilities
Part Number : 55-1341
55-1341
FEATURES & BENEFITS
•Electric-start mode allows the pre-ignition cranking to be set anywhere from 1 to 4 engine revolutions (only available with current modules – earlier modules cannot be updated)
•Pre-programmed ignitions are custom tailored for a specific S&S engine – no need for adjustments
•Single fire operation – requires a single fire coil for single spark plug applications
•Dual plugged applications require a pair of two tower coils or a single four tower coil
•Minimum 3.0? primary resistance
•Overload and short circuit protected
•VOES switches to less aggressive curve under load or hard acceleration
•6300 rpm rev-limiter
•24-hour break-in rev-limiter – prevents damage during break-in
•Data logging diagnostic capabilities
**** PLEASE NOTE ***** : 55-1341
These are performance and custom aftermarket products sourced to match or exceed original specifications as an alternative to the OEM version. Any Harley-Davidson part numbers referenced are for identification purposes only.
