910-0651 110" SIDEWINDER BIG BORE KIT FOR 2007-'17 HD® BIG TWIN MODELS - WRINKLE BLACK
S&S CYCLE910-0651
Inspired by our Pro Stock Drag Race engines, these updated big bore kit utilizes a Ductile Cast Iron liner wrapped in cast aluminum for optimum thermal conductivity and performance. Bolt-in kits do not require machining, rebalancing or engine removal, and include just about everything you'll need to complete the installation. The biggest cylinder bore that can be installed in a stock crankcase without machining!
Features & Benefits
•Low friction Ductile Cast Iron liner
•10.5:1 Compression -Bolts in. No machining, balancing, or splitting the crankcases
•96 and 103" engines are boosted to 110"

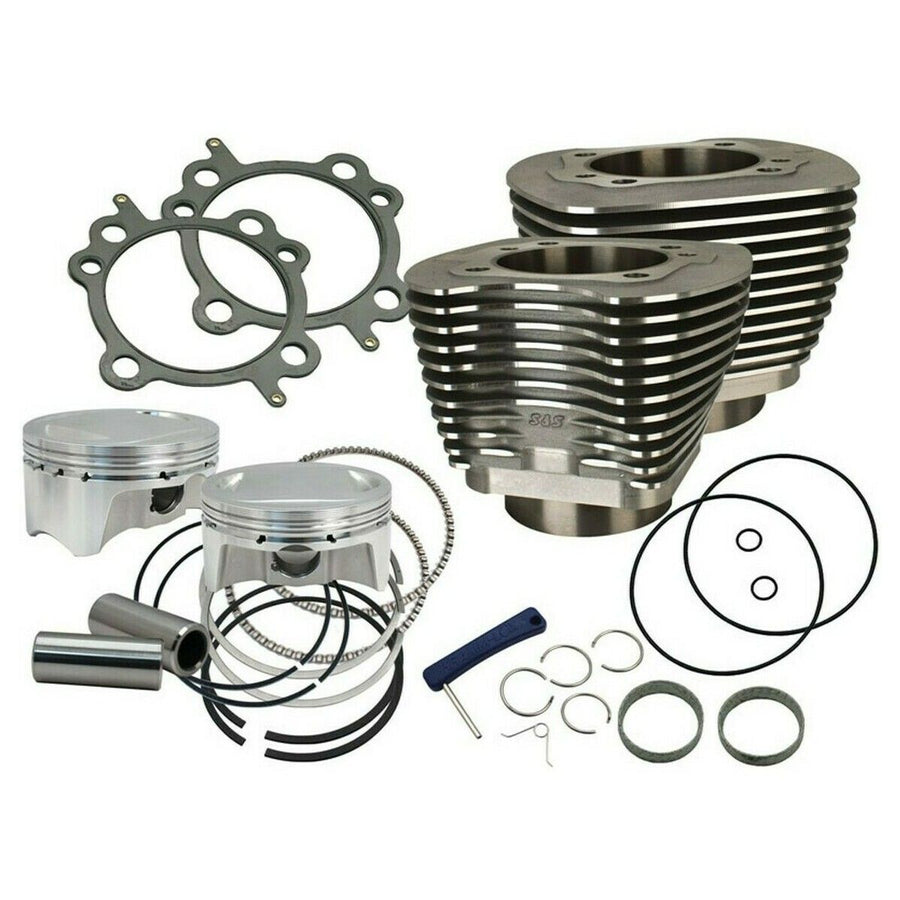

•Complete kits include cylinders, pistons, gaskets, and instructions
•Wrinkle black cylinders – matches stock finish
•Although not mandatory, we recommend adding an oil cooler to bikes ridden in warmer climates
*Not compatible with S&S 79cc Super Stock® heads and 2014-'16 Twin-Cooled touring models. S&S does not recommend compression ratios higher than 10:1 for Tri Glide® or other three wheel models (including conversions) due to extra loads caused by the lugging nature of these bikes. Detonation and subsequent engine damage may result.
Part Number : 910-0651
910-0651
Inspired by our Pro Stock Drag Race engines, these updated big bore kit utilizes a Ductile Cast Iron liner wrapped in cast aluminum for optimum thermal conductivity and performance. Bolt-in kits do not require machining, rebalancing or engine removal, and include just about everything you'll need to complete the installation. The biggest cylinder bore that can be installed in a stock crankcase without machining!
Features & Benefits
•Low friction Ductile Cast Iron liner
•10.5:1 Compression -Bolts in. No machining, balancing, or splitting the crankcases
•96 and 103" engines are boosted to 110"
•Complete kits include cylinders, pistons, gaskets, and instructions
•Wrinkle black cylinders – matches stock finish
•Although not mandatory, we recommend adding an oil cooler to bikes ridden in warmer climates
*Not compatible with S&S 79cc Super Stock® heads and 2014-'16 Twin-Cooled touring models. S&S does not recommend compression ratios higher than 10:1 for Tri Glide® or other three wheel models (including conversions) due to extra loads caused by the lugging nature of these bikes. Detonation and subsequent engine damage may result.
**** PLEASE NOTE ***** : 910-0651
These are performance and custom aftermarket products sourced to match or exceed original specifications as an alternative to the OEM version. Any Harley-Davidson part numbers referenced are for identification purposes only.
Inspired by our Pro Stock Drag Race engines, these updated big bore kit utilizes a Ductile Cast Iron liner wrapped in cast aluminum for optimum thermal conductivity and performance. Bolt-in kits do not require machining, rebalancing or engine removal, and include just about everything you'll need to complete the installation. The biggest cylinder bore that can be installed in a stock crankcase without machining!
Features & Benefits
•Low friction Ductile Cast Iron liner
•10.5:1 Compression -Bolts in. No machining, balancing, or splitting the crankcases
•96 and 103" engines are boosted to 110"
•Complete kits include cylinders, pistons, gaskets, and instructions
•Wrinkle black cylinders – matches stock finish
•Although not mandatory, we recommend adding an oil cooler to bikes ridden in warmer climates
| Stroke | Bore | Cylinder Length | Piston Type | Dome Volume | 83cc CNC Heads | 85cc Stock Heads | 89cc S&S Heads |
| 4.375 | 4.00" | 4.937" | Forged | .75 pop up | 10.7:1 | 10.5:1 | 10.2:1 |
*Not compatible with S&S 79cc Super Stock® heads and 2014-'16 Twin-Cooled touring models. S&S does not recommend compression ratios higher than 10:1 for Tri Glide® or other three wheel models (including conversions) due to extra loads caused by the lugging nature of these bikes. Detonation and subsequent engine damage may result.
Part Number : 910-0651
910-0651
Inspired by our Pro Stock Drag Race engines, these updated big bore kit utilizes a Ductile Cast Iron liner wrapped in cast aluminum for optimum thermal conductivity and performance. Bolt-in kits do not require machining, rebalancing or engine removal, and include just about everything you'll need to complete the installation. The biggest cylinder bore that can be installed in a stock crankcase without machining!
Features & Benefits
•Low friction Ductile Cast Iron liner
•10.5:1 Compression -Bolts in. No machining, balancing, or splitting the crankcases
•96 and 103" engines are boosted to 110"
•Complete kits include cylinders, pistons, gaskets, and instructions
•Wrinkle black cylinders – matches stock finish
•Although not mandatory, we recommend adding an oil cooler to bikes ridden in warmer climates
| Stroke | Bore | Cylinder Length | Piston Type | Dome Volume | 83cc CNC Heads | 85cc Stock Heads | 89cc S&S Heads |
| 4.375 | 4.00" | 4.937" | Forged | .75 pop up | 10.7:1 | 10.5:1 | 10.2:1 |
*Not compatible with S&S 79cc Super Stock® heads and 2014-'16 Twin-Cooled touring models. S&S does not recommend compression ratios higher than 10:1 for Tri Glide® or other three wheel models (including conversions) due to extra loads caused by the lugging nature of these bikes. Detonation and subsequent engine damage may result.
**** PLEASE NOTE ***** : 910-0651
These are performance and custom aftermarket products sourced to match or exceed original specifications as an alternative to the OEM version. Any Harley-Davidson part numbers referenced are for identification purposes only.
