320-0352 S&S® 4-3/8" STROKE FLYWHEEL ASSEMBLY W/SPROCKET SHAFT BEARING RACE FOR 2007-'16 NON-BALANCED HD® BIG TWINS - STOCK PISTONS
S&S CYCLE320-0352

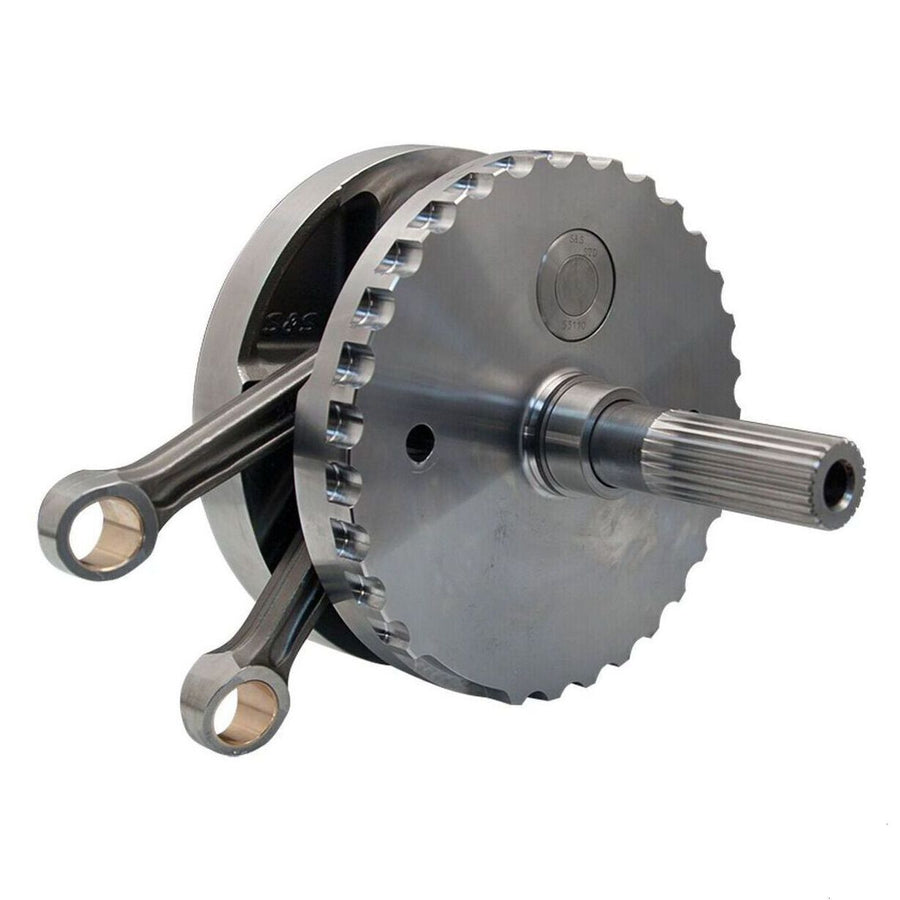

This 4-3/8" stroke 8-1/2" diameter flywheel assembly replaces the original flywheels 2007-'16 HD® big twin engines, when using stock pistons. Wrist pin end of connecting rods is tapered like stock rods. Sprocket shaft has the bearing race pressed on and is compatible with stock roller sprocket shaft bearing. Flywheel assembly is three piece design. Pinion and sprocket shafts are forged as part of the flywheel. The only joints in the assembly are where the 1.671" diameter connecting rod crankpin is pressed into the flywheels. Flywheels are CNC machined from heat-treated, closed die, steel forgings, which are 114% stronger than late style stock steel flywheels. Fully assembled with premium quaility S&S® heavy duty 7.659" connecting rods, with tapered wrist pin ends, and dynamically balanced. Assembly is trued to less than .0005" runout on pinion and sprocket shaft bearing surfaces, making them capable of higher rpm and fully compatible with gear drive cams.
Part Number : 320-0352
320-0352
This 4-3/8" stroke 8-1/2" diameter flywheel assembly replaces the original flywheels 2007-'16 HD® big twin engines, when using stock pistons. Wrist pin end of connecting rods is tapered like stock rods. Sprocket shaft has the bearing race pressed on and is compatible with stock roller sprocket shaft bearing. Flywheel assembly is three piece design. Pinion and sprocket shafts are forged as part of the flywheel. The only joints in the assembly are where the 1.671" diameter connecting rod crankpin is pressed into the flywheels. Flywheels are CNC machined from heat-treated, closed die, steel forgings, which are 114% stronger than late style stock steel flywheels. Fully assembled with premium quaility S&S® heavy duty 7.659" connecting rods, with tapered wrist pin ends, and dynamically balanced. Assembly is trued to less than .0005" runout on pinion and sprocket shaft bearing surfaces, making them capable of higher rpm and fully compatible with gear drive cams.
**** PLEASE NOTE ***** : 320-0352 IS A QUALITY AFTERMARKET PRODUCT. ANY OEM HARLEY PART NUMBERS IN THE TITLE OR DESCRIPTION OF THIS ITEM ARE FOR REFERENCE ONLY , THIS IS A QUALITY AFTERMARKET PRODUCT THAT WE HAVE SOURCED AS AN ALTERNATIVE TO THE OEM VERSION OR FOR WHEN HARLEY-DAVIDSON HAVE CEASED TO MANUFACTURE THE OEM PART.
This 4-3/8" stroke 8-1/2" diameter flywheel assembly replaces the original flywheels 2007-'16 HD® big twin engines, when using stock pistons. Wrist pin end of connecting rods is tapered like stock rods. Sprocket shaft has the bearing race pressed on and is compatible with stock roller sprocket shaft bearing. Flywheel assembly is three piece design. Pinion and sprocket shafts are forged as part of the flywheel. The only joints in the assembly are where the 1.671" diameter connecting rod crankpin is pressed into the flywheels. Flywheels are CNC machined from heat-treated, closed die, steel forgings, which are 114% stronger than late style stock steel flywheels. Fully assembled with premium quaility S&S® heavy duty 7.659" connecting rods, with tapered wrist pin ends, and dynamically balanced. Assembly is trued to less than .0005" runout on pinion and sprocket shaft bearing surfaces, making them capable of higher rpm and fully compatible with gear drive cams.
Part Number : 320-0352
320-0352
This 4-3/8" stroke 8-1/2" diameter flywheel assembly replaces the original flywheels 2007-'16 HD® big twin engines, when using stock pistons. Wrist pin end of connecting rods is tapered like stock rods. Sprocket shaft has the bearing race pressed on and is compatible with stock roller sprocket shaft bearing. Flywheel assembly is three piece design. Pinion and sprocket shafts are forged as part of the flywheel. The only joints in the assembly are where the 1.671" diameter connecting rod crankpin is pressed into the flywheels. Flywheels are CNC machined from heat-treated, closed die, steel forgings, which are 114% stronger than late style stock steel flywheels. Fully assembled with premium quaility S&S® heavy duty 7.659" connecting rods, with tapered wrist pin ends, and dynamically balanced. Assembly is trued to less than .0005" runout on pinion and sprocket shaft bearing surfaces, making them capable of higher rpm and fully compatible with gear drive cams.
**** PLEASE NOTE ***** : 320-0352 IS A QUALITY AFTERMARKET PRODUCT. ANY OEM HARLEY PART NUMBERS IN THE TITLE OR DESCRIPTION OF THIS ITEM ARE FOR REFERENCE ONLY , THIS IS A QUALITY AFTERMARKET PRODUCT THAT WE HAVE SOURCED AS AN ALTERNATIVE TO THE OEM VERSION OR FOR WHEN HARLEY-DAVIDSON HAVE CEASED TO MANUFACTURE THE OEM PART.
